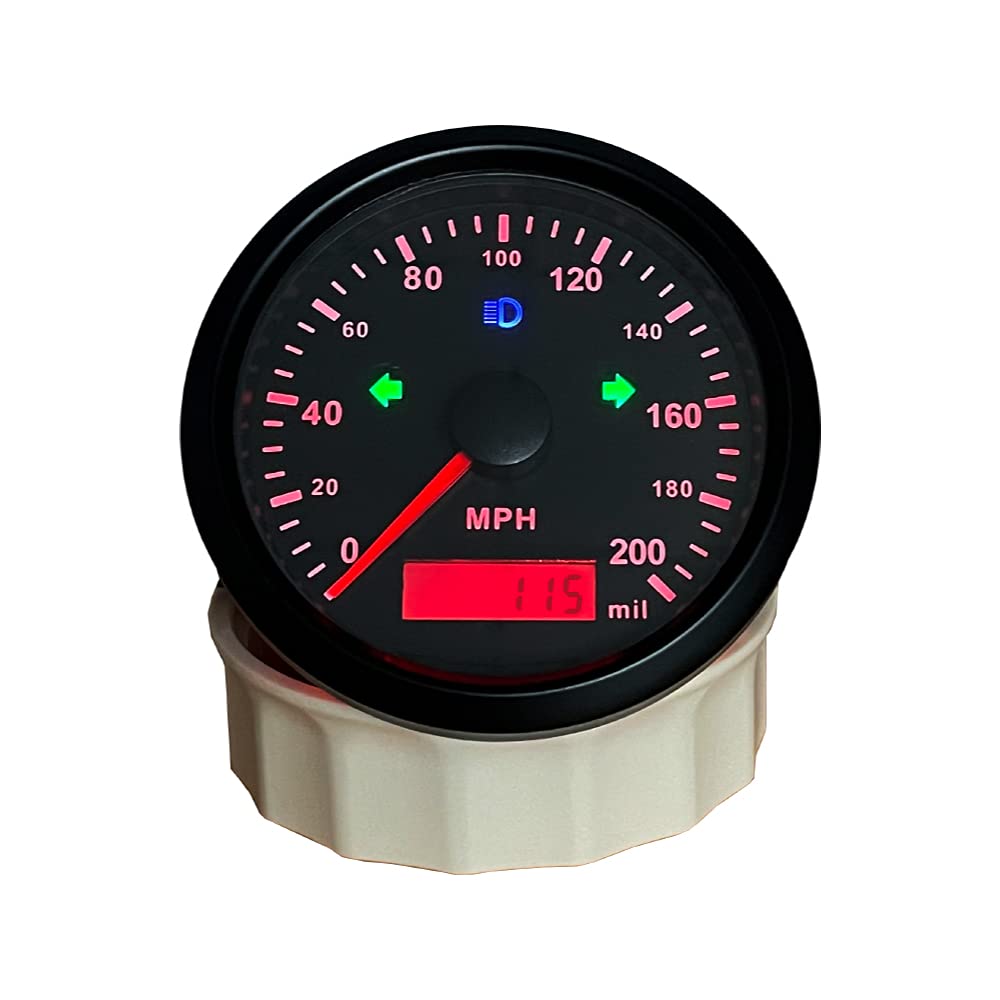

Rеvіеw ELING Universal GPS Speedometer Adjustable Odometer 0-200MPH Overspeed Alarm 85MM
Product reviews ELING Universal GPS Speedometer Adjustable Odometer 0-200MPH Overspeed Alarm 85MM
So you can check out the other reviews Gеt Pорulаr оƒƒеr ELING Universal GPS Speedometer Adjustable Odometer 0-200MPH Overspeed Alarm 85MM at Amazon.com
only with $68.99
| Brand | ELING |
| Material | Plastic |
| Item Dimensions LxWxH | 3.35 x 3.35 x 2.17 inches |
| Item Weight | 0.34 Kilograms |
- Open a 85mm (3 3/8") hole in the dashboard and allow a clearance of 55mm( 2 3/16”) behind the panel to fit the gauge
- Connection: Black wire-GND, Red-power(+), White-external button(+), Red/Yellow-Backlight, Blue-Left turn, Green-Right turn, White wire-High Beam
- 9-32V Working Voltage, Red and Yellow backlights available, Indication light: LEFT, HIGH BEAM, RIGHT
- Securely fasten GPS antenna, preferably outdoors (or inside front windscreen) so that it has a clear view of the sky to pick up satellite signal. Connect the antenna cable to socket in the back of the gauge. Do not cut cable
- OverSpeed Buzzer Alarm, Total Mileage Adjustable, Mileage Range: 0-999999 km
Product Description
Product Features:
-Suitable for all vehicles and off-road vehicles
-The signal comes directly from the satellite signal receiver(GPS Antenna), don’t need other speed sensor.
-The gauge has the advantages of high precision, quick location confirmation and short start up time.
-IP67 waterproof and dustproof grade
-Reverse polarity protection and anti-fogging performance
-No Stationery Drift
-Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.
Product Introduction
 |
 |
 |
|---|---|---|
How to install it ?1. Cut an 85mm (3 3/8") hole in the panel (II) and allow a clearance of 55mm (2 3/16”) behind the panel to fit the gauge. 2. For the GPS antenna, you should securely fasten it, black side upwards, preferably outside (or inside front windscreen) so that it has a clear view of the sky to pick up satellite signal. Connect the antenna cable to socket in the back of the gauge. And do not cut cable. | How to Set Odometer ?1. Press the back button for 2-3 seconds first and then turn on the power supply; 2. Release the button after seeing “ODO”; Press the button to change the flashing digit from 0 to 999999 to set up the target odometer value; 3. After adjustment, release button, and wait for menu to complete flashing. 4. Turn off the power supply, and turn on again. Speedometer will record the setting. | How to change "BUZZ" ?1. Press the button for 2-3 seconds first and then turn on the power supply; 2. Release the button after seeing “BUZZ”; Press the button to change the flashing digit from 10 to 240 to set up the target overspeed buzzer alarm threshold value; 3. After adjustment, release button, and wait for menu to complete flashing. 4. Turn off the power supply, and turn on again. Speedometer will record the setting. |
How does GPS Speedometer odometer compensation work ?
When the device enters tunnel/bridge without no GPS signal, the inside flash memory will record the last valid GPS longitude and latitude.
And the device will get valid GPS longitude and latitude again when leaving tunnel/bridge.
The CPU inside will calculate the two GPS data to use algorithm to add the lost odometer when in tunnel/bridge.
FAQ
 |
 |
 |
|---|---|---|
ASIN NO. B07P6DLYVDGPS speedometer keeps counting ? 1. After installation in the first time, GPS speedometer needs to search for signal, that's the reason that LCD counts numbers all the time. 2. After getting signal, LCD will come back to 0. It is normal. | ASIN NO. B07P6G5W5NHow to switch Odometer & Trip Odometer ? The LCD will show Total Odometer as default. Quick press the back button to switch show Trip Odometer. Long press the back button to reset the Trip Odometer to zero. | ASIN NO. B07P6GX3FQExternal button wiring ? For the external button, one pin is connected to white wire of meter, the other to power negative/ground. |
Package Includes:
1x GPS speedometer
1x GPS Antenna
1x Multi-plug socket
1x Installation Instruction
1x External Button
